2-way blow ceiling mounted cassette

FXCQ-A

Thin, lightweight design installs easily in narrow corridors

Product Features

Depth of all units is 620mm, ideal for narrow spaces
Individual flap control: flexibility to suit every room layout without changing the location of the unit!
Reduced energy consumption thanks to specially developed small tube heat exchanger, DC fan motor and drain pump
Stylish unit blends easily with any interior. The flaps close entirely when the unit is not operating and there are no air intake grilles visible
Optimum comfort guaranteed with automatic air flow adjustment to the required load
Fresh air intake integrated in the same system thus reducing installation cost as no additional ventilation device is required
Maintenance operations can be performed by removing the front panel
Branch duct discharge allows to optimize air distribution in irregular shaped rooms or to supply air to small adjacent rooms
Standard drain pump with 580mm lift increases flexibility and installation speed

Benefits

Whisper quiet

Daikin indoor units are whisper quiet. Also the outdoor units are guaranteed not to disturb the quiet of the neighbourhood.
Home leave operation

Maintains the indoor temperature at your specified comfort level during absence, thus saving energy
Fan only

The unit can be used as fan, blowing air without heating or cooling.
Auto cooling-heating changeover

Automatically selects heating or cooling mode to achieve the set temperature.
Ceiling soiling prevention

Prevents air from blowing out too long in horizontal position, to prevent ceiling stains.
Vertical auto swing

Possibility to select automatic vertical moving of the air discharge flaps for efficient air and temperature distribution throughout the room.
Fan speed steps (3 steps + auto)

Allows to select up to the given number of fan speed.
Dry programme

Allows humidity levels to be reduced without variations in room temperature.
Air filter

Removes airborne dust particles to ensure a steady supply of clean air.
Weekly timer (optional)

Can be set to start heating or cooling anytime on a daily or weekly basis.
Infrared remote control (optional)

Starts, stops and regulates the air conditioner from a distance.

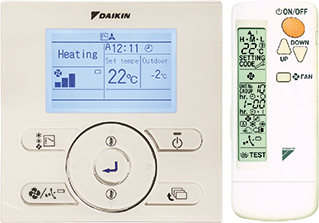

Wired remote control (optional)

Starts, stops and regulates the air conditioner.
Centralised control (optional)

Starts, stops and regulates several air conditioners from one central point.
Auto-restart

The unit restarts automatically at the original settings after power failure.
Self diagnosis

Simplifies maintenance by indicating system faults or operating anomalies.
Drain pump kit (standard)

Facilitates condensation draining from the indoor unit.
