- Combining with R-32 Bluevolution technology, reduces environmental impact with 68% compared to R-410A, leads directly to lower energy consumption thanks to its high energy efficiency and has up to lower 16% refrigerant charge
- Optional automatic filter cleaning panel results in higher efficiency & comfort and lower maintenance costs.
- Two optional intelligent sensors improve energy efficiency and comfort
- Lowest installation height in the market: 214mm for class 20-63
- The perfect balance in efficiency and comfort thanks to Variable Refrigerant Temperature: top seasonal efficiency throughout most of the year and quick reaction speed on the hottest days.
- Suits high sensible, infrastructure cooling applications
- Widest choice ever in decoration panels: designer panels in white (RAL9010) and black (RAL9005) and standard panels in white (RAL9010) with grey louvers or full white

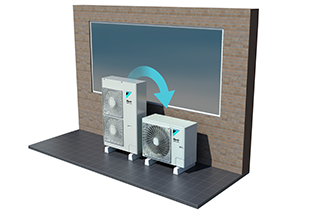

- Replace existing systems with R-32 technology without needing to replace the piping
- Guarantees operation in both heating and cooling mode down to -20°C
- Maximum piping length up to 85m
- Unified indoor unit can be combined with R-32 and R-410A outdoor units, symplifying stock
- Unique, low-height single fan range
- Compact dimensions allow almost unoticeable installation
- Market-leading serviceability and handling, thanks to wide access area, 7-segment display and additional handle
- Top efficiency: - Energy labels up to A++ in both cooling and heating - compressor offers substantial efficiency improvements
- Choosing for an R-32 product, reduces the environmental impact with 68% compared to R-410A, leads directly to lower energy consumption thanks to its high energy efficiency and has a lower refrigerant charge
- Individual flap control: flexibility to suit every room layout without changing the location of the unit!
- Bigger flaps and unique swing pattern improve equal air distribution
- 5 different fan speeds available for maximum comfort
- Optional fresh air intake
- Branch duct discharge allows to optimize air distribution in irregular shaped rooms or to supply air to small adjacent rooms
- Refrigerant cooled PCB guarantees reliable cooling, as it is not influenced by ambient temperature.
- Standard drain pump with 675mm lift increases flexibility and installation speed
- Outdoor units for pair, twin, triple, double twin application
Inverter compressors continuously adjust compressor speed to actual demand. Fewer power-consuming starts and stops result in decreased energy consumption (up to 30%) and more stable temperatures.
Presence & floor sensor
The presence sensor directs the air away from any person detected in the room, when the air flow control is on. The floor sensor detects the average floor temperature and ensures an even temperature distribution between ceiling and floor.
Home leave operation
Maintains the indoor temperature at your specified comfort level during absence, thus saving energy
Auto-cleaning filter (optional)
The filter automatically cleans itself once per day. Simplicity of upkeep means optimum energy efficiency and maximum comfort without the need for expensive or time-consuming maintenance.
When starting to warm up or when the thermostat is off, the air discharge direction is set horizontally and the fan to low speed, to prevent draught. After warming up, air discharge and fan speed are set as desired.
Individual flap control
Individual flap control via the wired remote controller enables you to easily fix the position of each flap individually, to suit any new room configuration. Optional closure kits are available as well.
Guaranteed operation down to -20°C
Daikin Altherma is suitable for all climates, even withstanding severe winter conditions with an operation range down to -20°C
Remove in a reliable, efficient and flexible way the heat constantly generated by the IT and server equipment to ensure maximum uptime while offering the best return on investment.
Onecta app (optional)
Control your indoor climate from any location via smartphone or tablet
Seasonal efficiency - Smart use of energy
Seasonal efficiency gives a more realistic indication on how efficient air conditioners operate over an entire heating or cooling season.
Swing type compressors have a unified vane and roller with fewer moving parts producing low vibration and friction, achieve higher reliability and efficiency compared to conventionally rotary compressors
Quick and quality system replacement in the most cost effective way
The unit can be used as fan, blowing air without heating or cooling.
Auto cooling-heating changeover
Automatically selects heating or cooling mode to achieve the set temperature.
Daikin indoor units are whisper quiet. Also the outdoor units are guaranteed not to disturb the quiet of the neighbourhood.
Night quiet mode
Reduces automatically the operation sound during nighttime of the outdoor unit by 3dB(A) by removing an outdoor unit jumper wire. (Multi outdoor units in cooling mode only).
Ceiling soiling prevention
Prevents air from blowing out too long in horizontal position, to prevent ceiling stains.
Vertical auto swing
Possibility to select automatic vertical moving of the air discharge flaps for efficient air and temperature distribution throughout the room.
Fan speed steps (5 steps + auto)
Allows to select up to the given number of fan speed.
Allows humidity levels to be reduced without variations in room temperature.
UV Streamer kit (optional)
Purifies the air of pollutants such as viruses, bacteria, fine dust (PM1.0), oudeurs, allergens, etc ensuring a healthy and hygienic indoor environment
Removes airborne dust particles to ensure a steady supply of clean air.
Weekly timer (optional)
Can be set to start heating or cooling anytime on a daily or weekly basis.
Infrared remote control (optional)
Starts, stops and regulates the air conditioner from a distance.
Wired remote control (optional)
Starts, stops and regulates the air conditioner.
Centralised control (optional)
Starts, stops and regulates several air conditioners from one central point.
The unit restarts automatically at the original settings after power failure.
Simplifies maintenance by indicating system faults or operating anomalies.
Drain pump kit (standard)
Facilitates condensation draining from the indoor unit.
Twin/triple/double twin application
2,3 or 4 indoor units can be connected to only a single outdoor unit even if they have different capacities. All indoor units operate within the same heating or cooling mode from one remote control.
Variable refrigerant temperature
The intelligent systems ensures highest energy savings with additional comfort to better suit application requirements.
Multi model application
Up to 5 indoor units can be connected to a single outdoor unit, even if they have different capacities. All indoor units can individually be operated within the same heating or cooling mode.
VRV for residential application
Up to 9 indoor units (even different capacities and up to 71 class) can be connected to a single outdoor unit. All indoor units can individually be operated within the same mode.
Low sound enclosure (optional)
Dedicated Daikin developed and tested low sound enclosure, reducing sound power by up to -10 dB(A)
