Installation flexibility for every project
High Airflow Output
EC fan with speed control delivers efficient, consistent airflow of 4,000 m³/h with minimal energy consumption across all configurations.
Four Plug & Play Configurations
Exclusively designed for VRV and ERA systems. Front grille, top grille, ductable, and left/right-side connection options available.
Easy DX Coil Installation
EKEXVA250 expansion valve and EKEA electronic board come pre-mounted. Z control simplifies installation and commissioning out of the box.
R410A & R32 Compatible
Works seamlessly with VRV IV+ (R410A), VRV 5 (R32), and ERA (R32) systems. Tightfit joints enable fast, leak-free refrigerant connections.
Quiet Operation
Sound power levels as low as 74 dB(A) on the outdoor unit, paired with EC fan speed control for quiet, smooth indoor performance.
Highest Comfort Levels
VRT technology with wide operating range — heating from 10 °C BS. Madoka controller and Z control enable precise room temperature management.
Compact Footprint

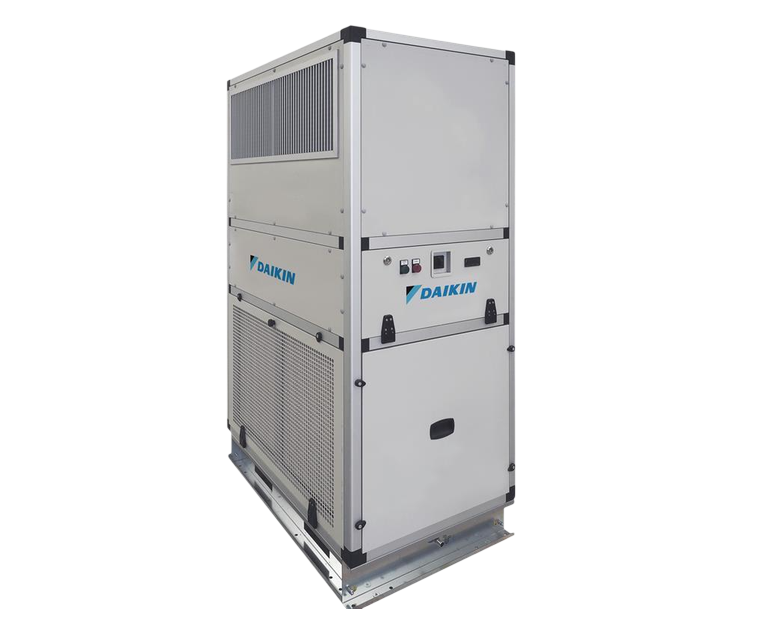

Floor-standing design (1,950 mm H) with a 1,170 × 750 mm base enables placement where ceiling space is unavailable — ideal for low-headroom retrofit scenarios.
High Efficiency
SEER up to 7.30 and SCOP up to 4.50 when paired with ERA outdoor unit. Eurovent-certified performance for full transparency.
Easy Retrofit Installation
Designed for quick upgrades of existing buildings. Easy removal and relocation, with support for Loop by Daikin certified regenerated refrigerant.
The right solution for every space
From retail to education, Compact R adapts to the ventilation demands of diverse commercial environments, delivering healthy, comfortable air where it matters most.
Offices
Support occupant productivity with stable, controlled indoor air quality across open-plan and cellular spaces.
Education
High-quality filtration and DCV capability ensure healthy learning environments that adapt to room occupancy.
Retail
Compact footprint suits tight plant rooms; flexible configurations handle varying occupancy loads.
Hospitality
Indoor or rooftop installation options and quiet, efficient operation make Compact R ideal for hotels and restaurants.
Three ways to direct your airflow
Airflow configurations

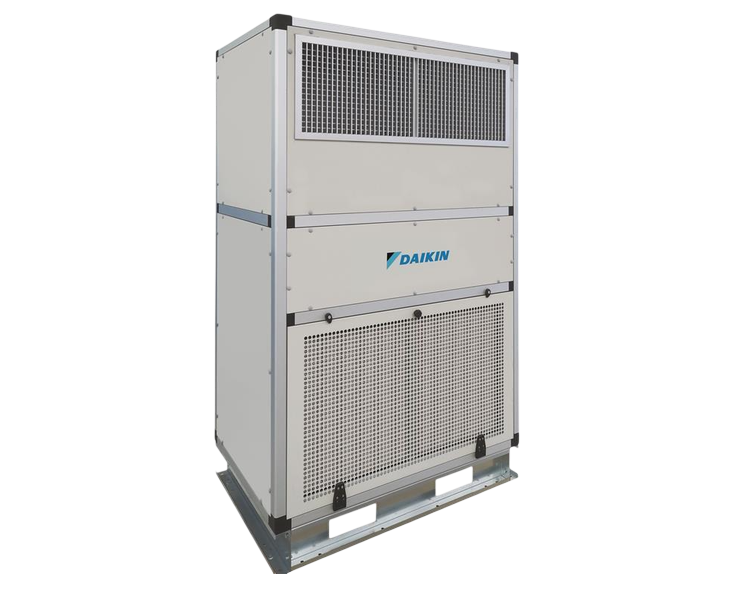

Standard Front Grille
Default configuration with front-facing adjustable supply grille. Ideal for open spaces requiring forward air distribution.
Standard Top Grille
Front and top panels are the same size and can be swapped on site — repositioning the supply grille upward for vertical distribution.
Ductable Discharge
Top panel placed at the front allows upward ducting. Max ESP up to 500 Pa supports full ducted air distribution systems.
Compatibility with VRV & ERA heat pumps
VRV IV+
- RYYQ10U
- R410A · 10 HP · SEER 6.8 · SCOP 4.3
VRV 5
- RXYSQ10TY1
- R410A · 10 HP · SEER 6.3 · SCOP 4.1
VRV 5 Advanced
- RXYSA10A
- R32 · 10 HP · SEER 6.93 · SCOP 4.42
ERA
- ERA250AYF
- R32 · 10 HP · SEER 7.30 · SCOP 4.50
Indoor unit technical specifications at a glance
| Parameter | Value |
Fan type | EC (with speed control) |
Nominal airflow (m³/h) | 4,000 |
Nominal ESP (Pa) | 100 |
Maximum ESP (Pa) | 500 |
Power supply | 3ph+N+PE / 50 Hz / 380 V |
Air filter | ePM10 55% (M5) |
Dimensions (H × L × D) (mm) | 1,950 × 1,170 × 750 |
Weight (kg) | 330 |
Heating operating range (°C DB) | 10 – 27 |
Cooling operating range (°C DB) | 20 – 35 |
Connections | Right side / Left side |
Controller | BRC1H52W / S / K (sold separately) |
