VRV IV heat pump, optimised for heating

RXYLQ-T

Where heating is priority without compromising on efficiency
RXYLQ-T

Product Features

  • By choosing this product with LOOP by Daikin you support the reuse of refrigerant
  • Specifically developed for heating operation in low ambient conditions, making it suitable for single source heating
  • Stable heating capacity down to -15°C, thanks to vapour injection compressor
  • Extended operation range down to -25°C in heating
  • Wide range of indoor units: possibility to combine VRV with stylish indoor units (Daikin Emura, Perfera)
  • Incorporates VRV IV standards & technologies: Variable Refrigerant Temperature, VRV configurator, 7 segment display and full inverter compressors, 4-side heat exchanger, refrigerant cooled PCB, new DC fan motor, ...
  • High reliability in severe conditions, thanks to hot gas bypass circuit in the heat exchanger
  • 15% increased heating capacity at high relative humidity (2°CDB/1°CWB and RH=83%) vs previous model
  • Shorter defrost and heat up time, compared to standard VRV heat pump
  • Covers all thermal needs of a building via a single point of contact: accurate temperature control, ventilation, air handling units and Biddle air curtains
  • Customize your VRV for best seasonal efficiency & comfort with the weather dependant Variable Refrigerant Temperature function. Increased seasonal efficiency with up to 28%. No more cold draft by supply of high outblow temperatures
  • Already fully ErP 2021 compliant (LOT 21 - Tier 2)
  • Free combination of outdoor units to meet installation space or efficiency requirements
  • High external static pressure (up to 78.4Pa) allows indoor installation
  • Simplified installation & guaranteed optimal efficiency with automatic charging & testing
  • Easy compliance with F-gas regulation thanks to automated refrigerant containment check
  • Wide piping flexibility: 30m indoor height difference, maximum piping length: 190m, total piping length: 500m

Benefits

  • Inverter

    Inverter

    Inverter compressors continuously adjust compressor speed to actual demand. Fewer power-consuming starts and stops result in decreased energy consumption (up to 30%) and more stable temperatures.

  • Variable refrigerant temperature

    Variable refrigerant temperature

    The intelligent systems ensures highest energy savings with additional comfort to better suit application requirements.

Technical details

Download product technical details View product technical details

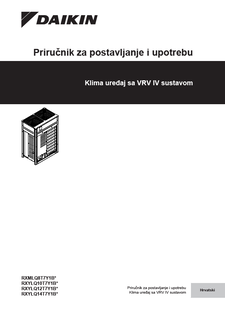

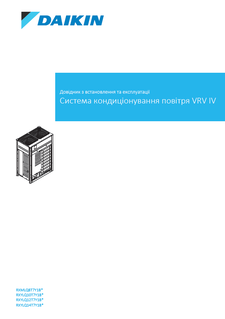

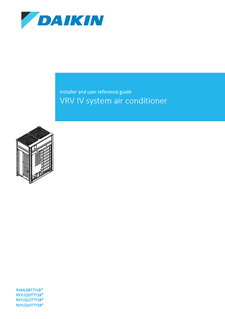

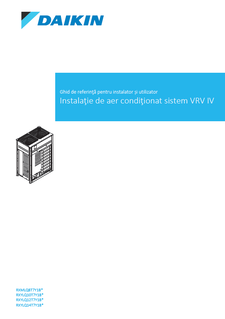

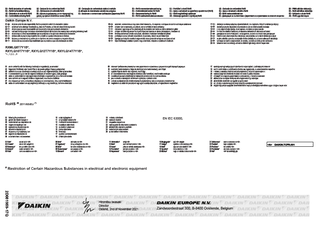

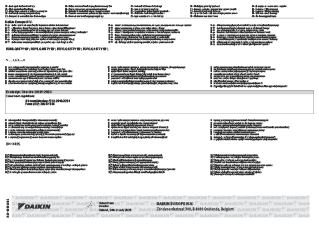

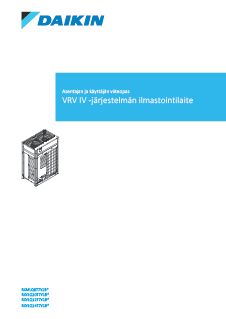

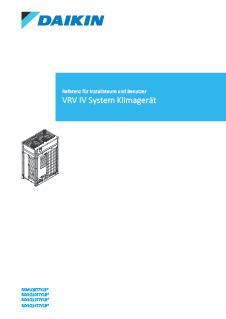

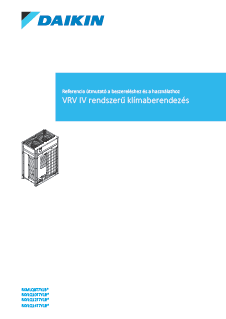

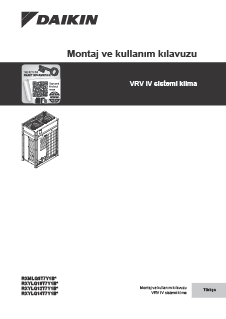

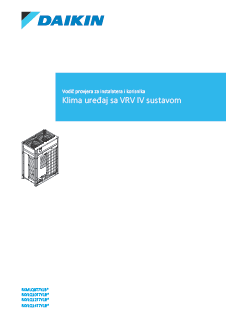

Documentation
