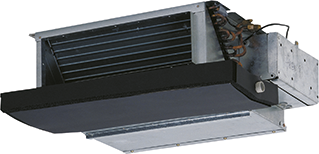

Small concealed ceiling unit

FXDQ-M9

Designed for hotel applications

Product Features

Compact unit (230mm high & 652mm deep), can easily be mounted in narrow ceiling voids
Discretely concealed in the ceiling: only the suction and discharge grilles are visible
Flexible installation, as the air suction direction can be altered from rear to bottom suction
For easy mounting, the drain pan can be located to the left or right of the unit

Multi tenant

The indoor unit's main power supply can be turned off when leaving the hotel or office building.
Inverter

Inverter compressors continuously adjust compressor speed to actual demand. Fewer power-consuming starts and stops result in decreased energy consumption (up to 30%) and more stable temperatures.
Home leave operation

Maintains the indoor temperature at your specified comfort level during absence, thus saving energy
Fan only

The unit can be used as fan, blowing air without heating or cooling.
Auto cooling-heating changeover

Automatically selects heating or cooling mode to achieve the set temperature.
Fan speed steps (2 steps)

Allows to select up to the given number of fan speed.
Dry programme

Allows humidity levels to be reduced without variations in room temperature.
Air filter

Removes airborne dust particles to ensure a steady supply of clean air.
Weekly timer

Can be set to start heating or cooling anytime on a daily or weekly basis.
Infrared remote control

Starts, stops and regulates the air conditioner from a distance.
Wired remote control

Starts, stops and regulates the air conditioner.
Centralised control

Starts, stops and regulates several air conditioners from one central point.
Auto-restart

The unit restarts automatically at the original settings after power failure.
Self diagnosis

Simplifies maintenance by indicating system faults or operating anomalies.
