Product Features
- Prevent energy losses from over-ventilation while improving indoor air quality with optional CO2 sensor
- Premium quality counter flow plate heat exchanger, recovering up to 93% of thermal energy
- Compact unit, only 550 mm width (approx 800m³/h) up to 890 mm (approx 3900 m3/h). All sizes pass through standard doors
- Up to three filter stages, from Coarse 55% (G4) up to ePM1 80% (F9) (optional). More than 90% of PM 1 is removed from supply air
- Perfect air flow management: can operate in Constant Air Volume (CAV) or Variable Air Volume (VAV)
- Up to three coils management (optional)
- DX coil integration (option) for ERQ/VRV connection, for a unique Daikin fresh air package
- Mixing damper (option) adds total space air conditioning to fresh air treatment
- Vertical connections, in combination with one of the smallest footprint on the market, reduces the need for installation space
- Ideal solution for decentralized ventilation, with high efficiency counterflow plate heat exchanger and low energy consumption.
- ErP 2018 compliant
- Reduced energy consumption thanks to EC inverter driven centrifugal fans
- 5 pre-defined sizes
- Quiet operation thanks Mineral wool panel insulation (50mm) and silencer option
- High efficiency defrost mode
- Choice between doors and connections side on the left (ATB-L*) or right (ATB-R*)

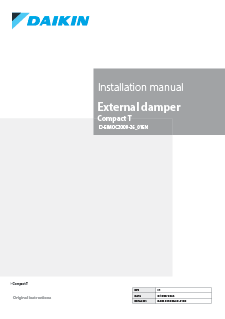

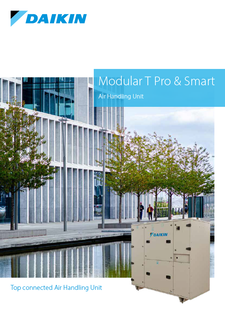

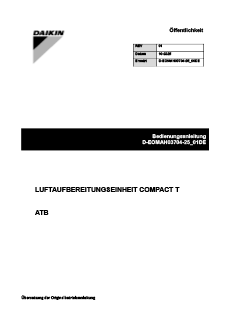

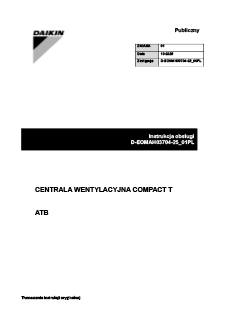

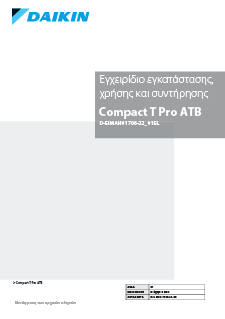

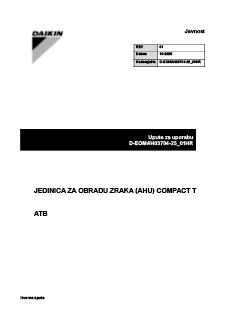

Documentation
